Workshop Python Image Analysis

Martijn Wehrens, 2026-04

Estimated time: 20 mins presenting

Chapter IIB: How computers represent numbers

Data types determine what information can be stored

Types of data

Multiple data types exist. There are three important distinctions between these types:

  • The bit-depth;
    • Determines how many values can be stored, e.g. 0-255 values for a bit depth of 8 (unsigned).
    • More depth takes more disk space.
    • Relevance: especially when generating large amounts of images, a trade-off between storage requirements and value range becomes important. Typically, you’ll use 8-bit or 16-bit images.
  • Signed or unsigned;
    • Whether negative values can be stored.
    • Relevance: usually only positive numbers are used in images, so you won’t see the ‘signed’ format often.
  • Integer vs. Floating Point;
    • Integer can only store whole numbers.
    • Floating Point is a technically more complicated format, which can store (very large and very small) numbers with a decimal point, such as 2.0005, 3.14159, 100023.93, et cetera.
    • Relevance: Floating point images are often used in intermediate steps of image processing, but are rarely used for storing raw images.

The table below summarizes common image data formats. In practice, uint8 and uint16 are used most frequently.

Type Bit-depth dtype Values
Unsigned integer 8 uint8 0 to 255
Signed integer 8 int8 -128 to 127
Unsigned integer 16 uint16 0 to 65535
Signed integer 16 int16 -32768 to 32767
Unsigned integer 32 uint32 0 to 4,294,967,295
Signed integer 32 int32 -2,147,483,648 to 2,147,483,647
Floating point 32 float32 -3.4E+38 to 3.4E+38 *
Floating point 64 float64 **
import matplotlib.pyplot as plt
import seaborn as sns
import tifffile as tiff
import numpy as np

Difference between 8-bit and 16-bit sometimes important

# Load a picture of fluorescently labeled HeLa cells (8 bit)
img_path8bit = 'images/biological/exampleHeLa-8bit.tif'
img_HeLa_8bit = tiff.imread(img_path8bit)

# Display information about the image
print('The type of this image is: ', img_HeLa_8bit.dtype.name)
print('uint8 has ', 2**8, ' possible values')

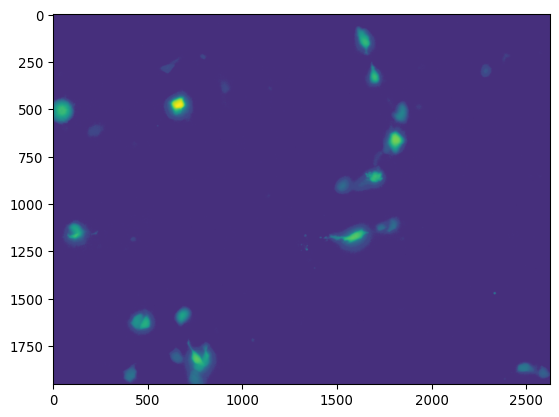

# Show the image
_ = plt.imshow(np.log(img_HeLa_8bit+1), cmap='viridis')
The type of this image is:  uint8
uint8 has  256  possible values

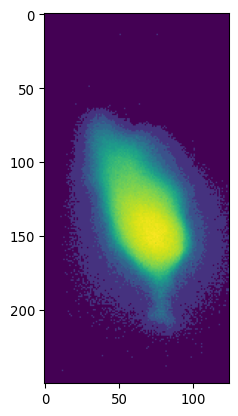

_ = plt.imshow(np.log(img_HeLa_8bit[0:250,1575:1700]+1),
               cmap='viridis')

# Load a picture of fluorescently labeled HeLa cells
img_path = 'images/biological/exampleHeLa.tif'
img_HeLa = tiff.imread(img_path)

# Display information about the image
print('The type of this image is: ', img_HeLa.dtype.name)
print('uint16 has ', 2**16, ' possible values')

_ = plt.imshow(np.log(img_HeLa[0:250,1575:1700]+1),
               cmap='viridis')
The type of this image is:  uint16
uint16 has  65536  possible values

Take home messages

  • When acquiring data:

    • Decide the relevant biological range and amount of detail within that range that you need.
    • Make sure the file format you save to allows for that range and level of detail.
      • Histograms can help during that assessment.

  • Generally, opt for the uint16 format and save your images as .tif to prevent losses.

  • Other pitfalls:

    • Saturated pixels:
      • Occurs when your real signal falls outside your file format range.
      • Values higher than the maximum value will collapse to the maximum.
      • Example: Say you measure a photon count of 466, but your storage range is 0-255, then the value 466 will be stored as 255. Information is lost.

Let’s get real (size)

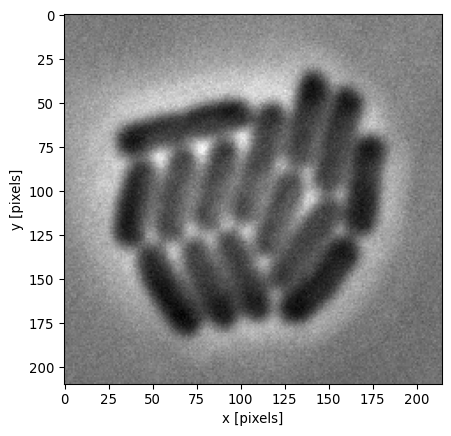

# Example image
img = tiff.imread('images/biological/microcolony_ecoli.tif')
_ = plt.imshow(img, cmap="gray")
_ = plt.xlabel('x [pixels]'); _ = plt.ylabel('y [pixels]')

# Luckily, we know the size of a pixel
pixel_size = 0.041  # µm per pixel
    # In many modern setups, this is stored in the metadata
    # E.g. FIJI > Image > Show Info

# Get the number of pixels per dimension
nx = img.shape[1]
ny = img.shape[0]

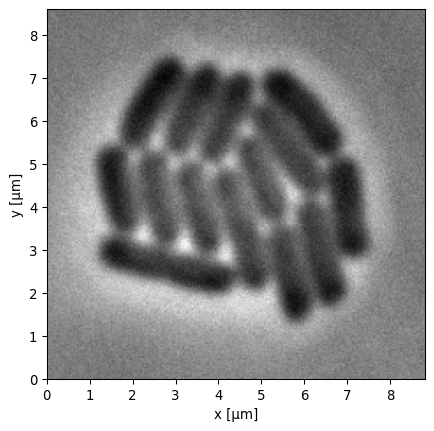

# Define extent: [xmin, xmax, ymin, ymax]
extent = [0, nx * pixel_size, 0, ny * pixel_size]

# Make the plot
plt.imshow(img, extent=extent, origin="lower", cmap="gray")
plt.xlabel("x [µm]")
plt.ylabel("y [µm]")
plt.show()

# This is a specific example, but determining lengths
# or areas can often be relevant, in which case you
# need to know the pixel size.

# Note the confusing x,y vs. img[i,j] conventions

# generate 100 x 500 image with noise
img_example = np.random.random((100, 500))
plt.imshow(img_example)

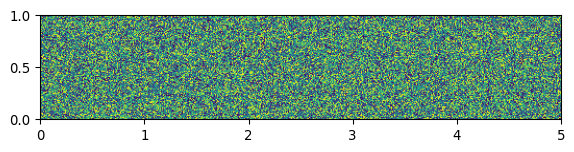

# now set extent explicitly
plt.imshow(img_example, extent=[0,5,0,1])

Type conversions

# what happens here?

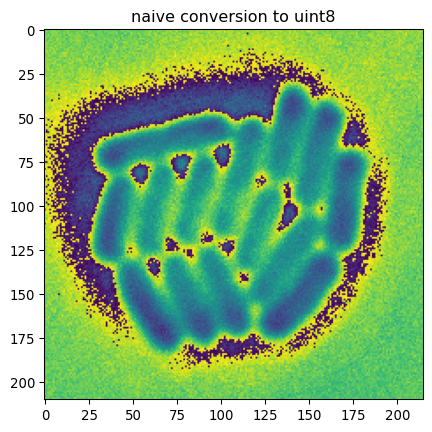

plt.title('naive conversion to uint8')
plt.imshow(img.astype('uint8'))
plt.show()

plt.title('Original histogram')
plt.hist(img.ravel(), bins=256)
plt.show()

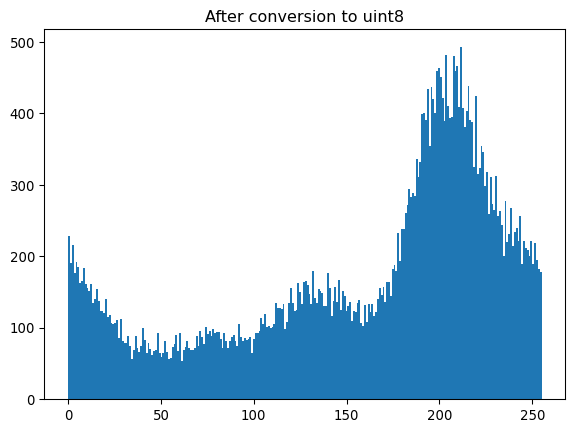

plt.title('After conversion to uint8')
plt.hist(img.astype('uint8').ravel(), bins=256)
plt.show()

# OPTIONAL
# .. because cyclical indexing
# .. this equals ..
plt.imshow(img % 256)

# So rescale first
from skimage import exposure
img_rescaled8bit = exposure.rescale_intensity(img, out_range=(0, 255)).astype('uint8')
    # could also use shortcut out_range='uint8'
    # img_rescaled8bit = exposure.rescale_intensity(img, out_range='uint8')

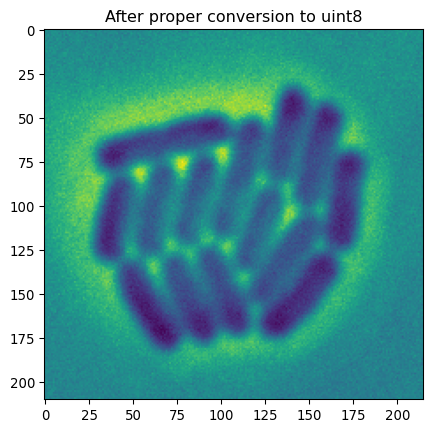

plt.title('After proper conversion to uint8')
plt.imshow(img_rescaled8bit)
plt.show()

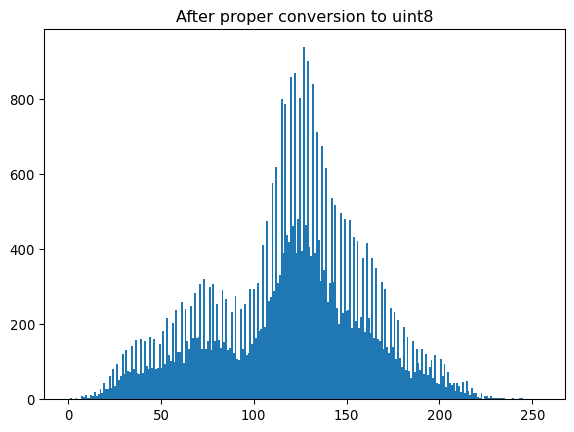

plt.title('After proper conversion to uint8')
plt.hist(img_rescaled8bit.ravel(), bins=256)
plt.show()

Lossy and lossless data storage

# reading/writing jpg, tiff, png, etc
import imageio as iio
    # imageio
    #  - collection of plugins
    #  - supports many formats
    #  - no setting, selects lib through prioritized table:
    #       - https://imageio.readthedocs.io/en/stable/formats/index.html
    #       - tiffile is #1 for tiff
    # (skimage.io is deprecated; was a wrapper around iio anyways)

iio.imsave('output-test/exampleHeLa_05.jpg', img_rescaled8bit, quality=5)
iio.imsave('output-test/exampleHeLa_50.jpg', img_rescaled8bit, quality=50)
iio.imsave('output-test/exampleHeLa_100.jpg', img_rescaled8bit, quality=100)

# Inspect the output
# Can you explain what happened?

# jpg (lossy) will lead to imprecise storage of your image data
# tiff (lossless) will compress, but precisely store data values

# Would you save your data as jpg, at all?

For further reading, check out lossless and lossy compression at Wikipedia.

See imageio’s documentation for a list of supported formats, and which libraries are preferentially used to read files.
